Date Pickers are user interface components designed to facilitate the selection of dates in an intuitive manner. It presents users with a visual representation of a calendar, enabling them to navigate through months and years to pinpoint the desired date effortlessly.

Additionally, Date Pickers may include features such as date range selection, localization support for different date formats and languages, and accessibility.

Overall, Date Pickers serve as a valuable tool in applications requiring date input, contributing to a more efficient and user-friendly interaction experience.

Datepicker_Anatomy — Date Picker anatomy

A: Day Variation

B: Month Variation

C: Year Variation

1: Field

2: Current Month/Year/Decade Indicator

3: Navigator

4: Element

Date Picker applied to invoices

Used for:

Forms

In invoices where there is a possibility to insert a due date, a Date Picker is the suggested component to use;

Data Grid

When filtering data inside a data grid, a date can be set, and, in that case, the suggested component to use is the Date Picker;

Error reduction

By presenting dates in a structured format and preventing invalid inputs, a Date Picker helps reduce errors associated with manual date entry, enhancing data accuracy;

Efficient date selection

A Date Picker simplifies the process of selecting dates by providing a visual calendar interface, making it faster and easier for users to choose dates accurately.

Don’t use for:

Accessibility considerations

If the Date Picker is not implemented with proper accessibility features, such as keyboard navigation or screen reader support, it may pose challenges for users with disabilities or impairments;

Limited date entry

If the input task requires only a single date or a small range of dates, a Date Picker may be excessive and unnecessary, adding unnecessary complexity to the interface;

Excessive complexity

For simple date entry tasks that don’t require visual navigation through a calendar interface, using a Date Picker may introduce unnecessary complexity and cognitive load for users.

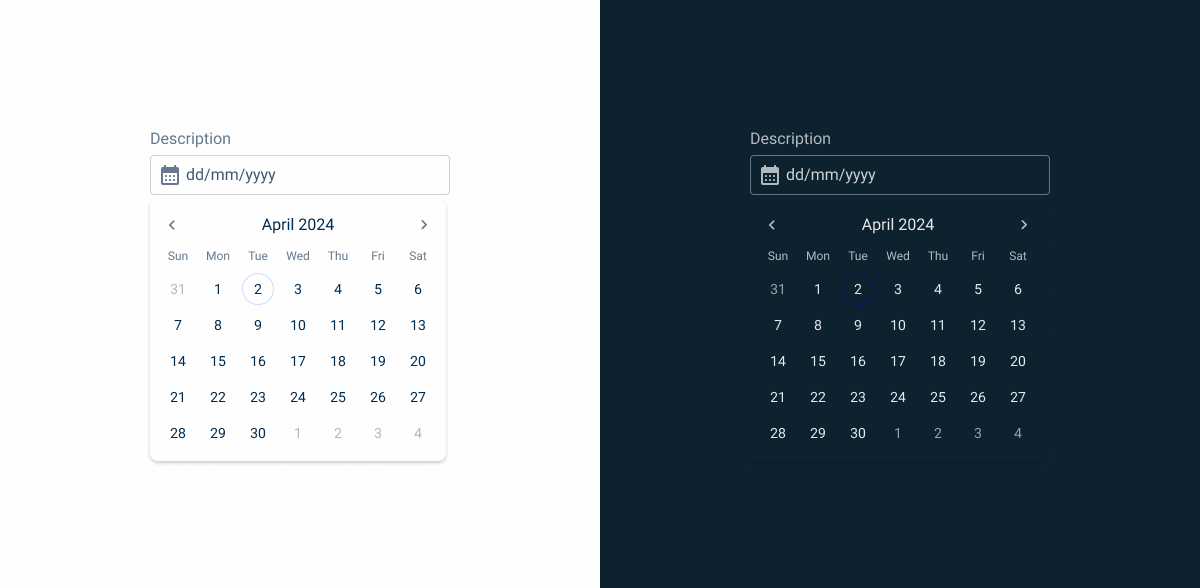

Datepicker_CurrentDay — Current day represented in a Date Picker

Demo

Access the Figma file and inspect the element using Dev Mode.

Open Figma

What’s New?

16/07/2024

Current_Datepicker — Date Picker current version

Updated typography;
Updated element styles;

Não foram encontrados artigos.

Behavior

Date Range

In some specific cases, it is necessary to filter some data in a specific range (e.g. in a data grid), therefore, a range variation has been created. This range provides the possibility to choose a range between two dates, with simplified navigation. In this variation a start and end date are always needed, to reduce ambiguous usage of the Date Picker.

In addition, in the same variation there are some shortcuts to quickly access preset values, namely:

Today;
This Week;
This Quarter;
This Year;
This Month.

Date Picker range

The Date Picker should allow you to select past and future dates.

When showing the Date Picker without a defined date, the placeholder text should indicate the date format, e.g. DD/MM/YYYY.

Include the date format on the label so the user doesn’t lose this reference when entering the date manually.

Variations

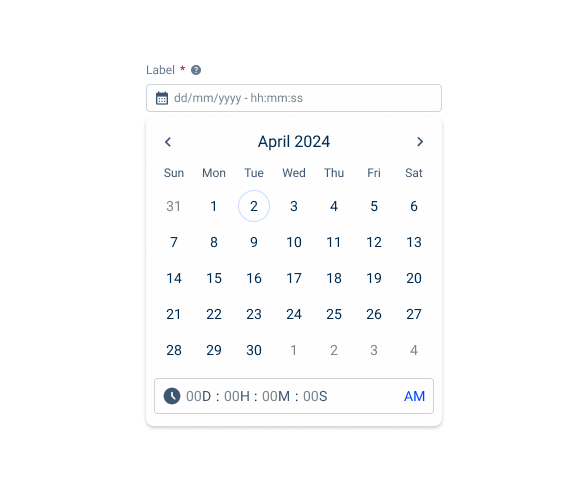

We also have a variation that includes the Time Picker component. In this specific case, there is no need to show the label, so in these cases, an icon must be shown. The guidelines of the Time Picker remain the same.

Date Picker-Time Picker

When using different variations, make sure the placeholder text represents all values users are able to select from the date picker.

Responsive

For responsive cases, when we use tablets, or mobile devices we need to assure the best usage of the date pickers, and specially in the date range variation that requires more space.

Firstly, for simple date pickers, the drop-down is displayed normally, as it doesn’t take up much space.

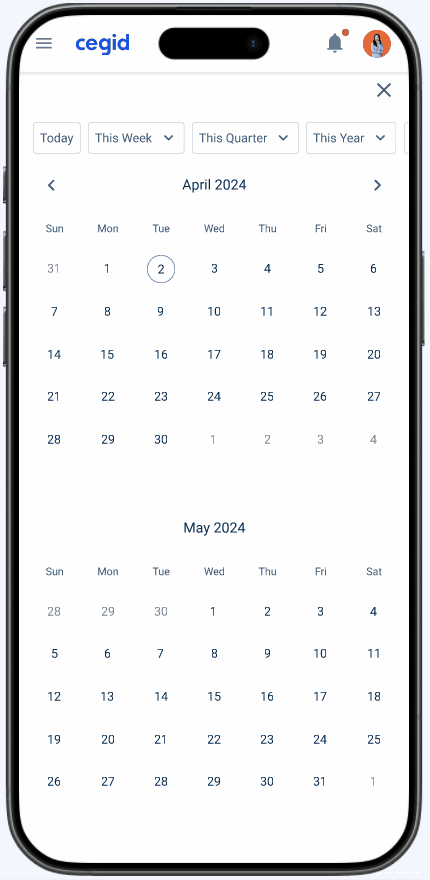

For the date range variation, a full-screen page is opened so that the entire screen is dedicated to selecting the date range.

In this variation, the two months are ordered vertically and the chips are at the top of the page, for easier filtering and a more organic drop-down when triggered. Additionally, the chips adapt their size for better usability.

Furthermore, to maintain consistency between date range, month and year variations, the navigation is always located in the first date picker.

Simple Date Picker in mobile

Date range in a tablet

Date range in a extra small screen

The width of the Date Picker can be adjusted to fit the dimensions of the other form entries.
